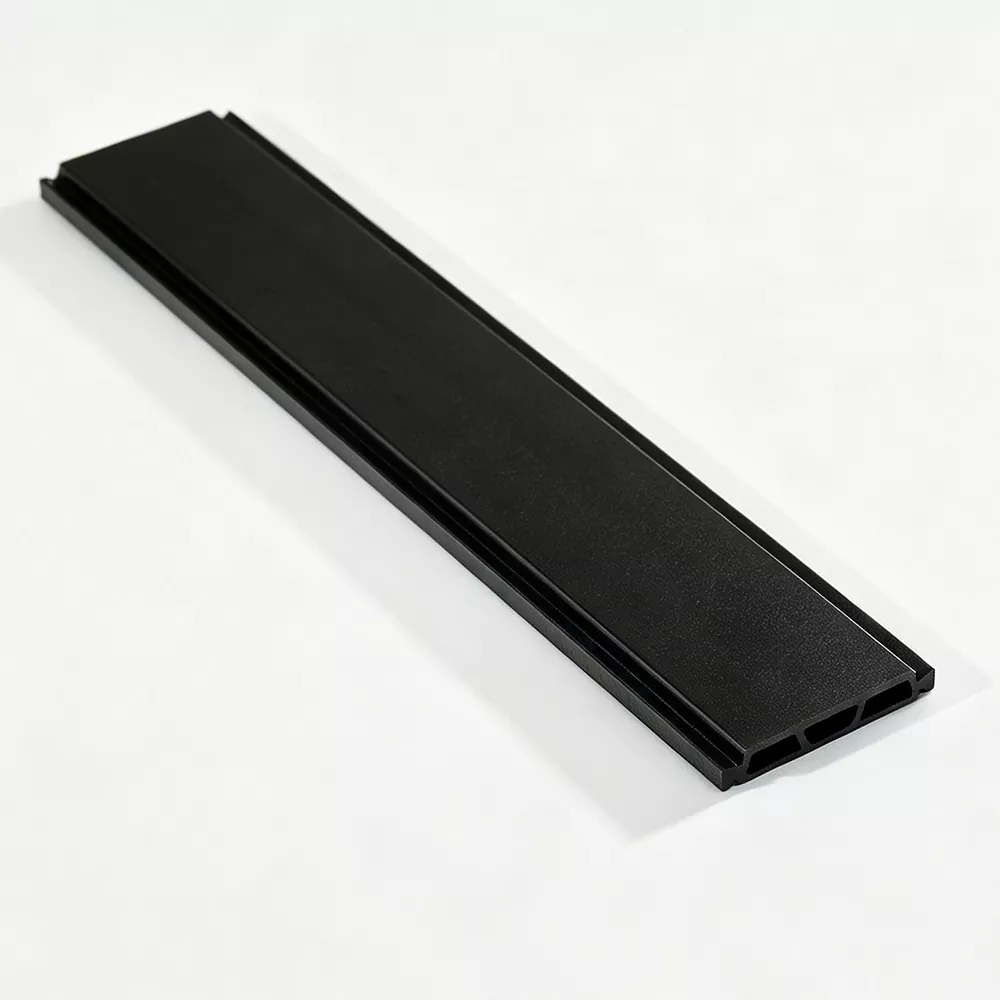

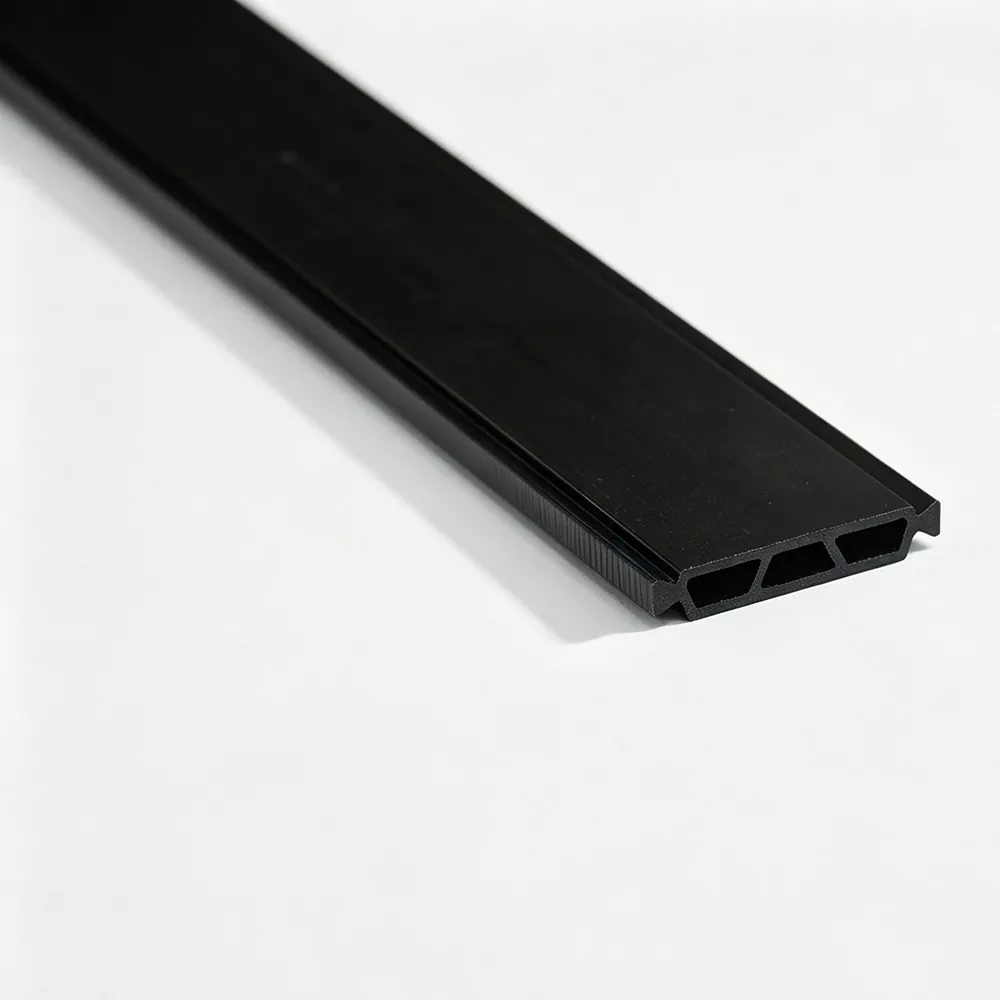

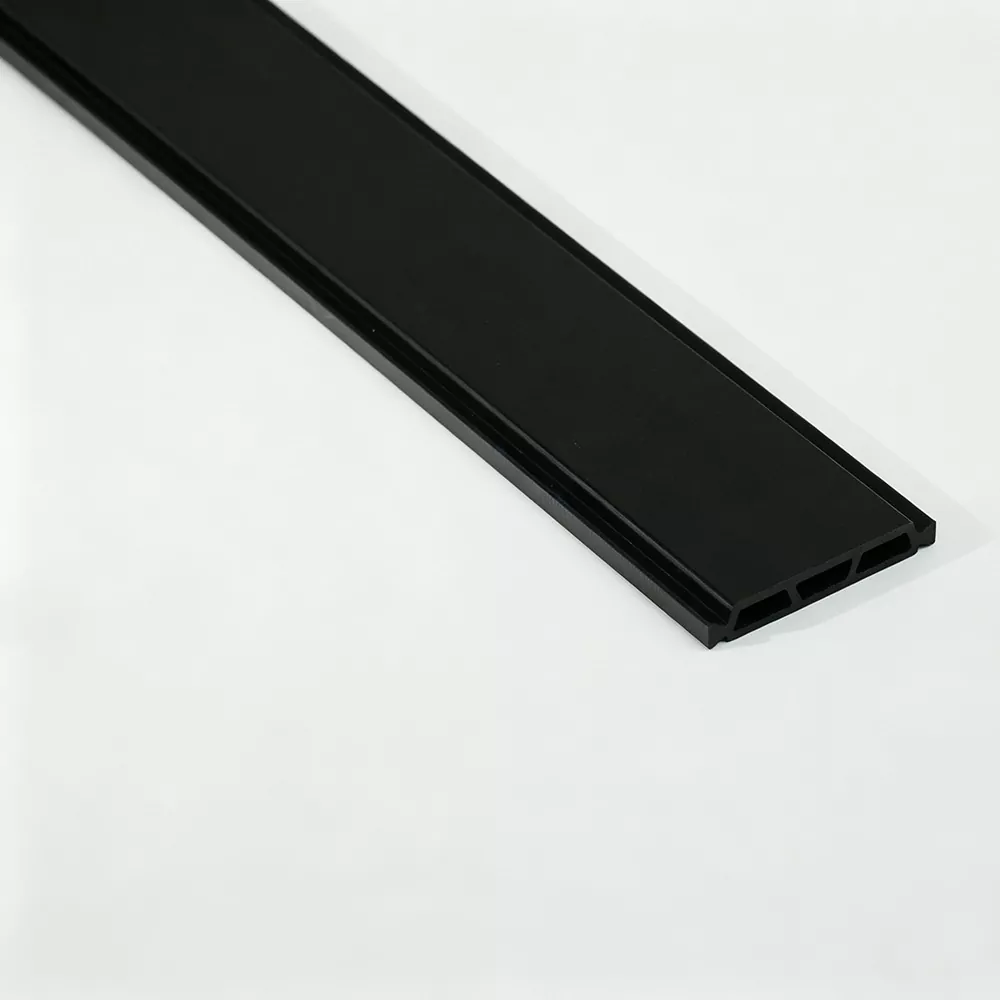

Knurled Polyamide Thermal Break Strip

Jinxing, a China manufacturer and supplier of PA66 thermal break profiles, produces Knurled Polyamide Thermal Break Strip according to the required aluminum groove, strip dimensions and assembly method, helping the completed profile maintain a secure connection after rolling. The knurled structure gives the Polyamide Thermal Break Strip a more defined contact surface for mechanical engagement with the aluminum extrusion.

Knurled Engagement

A thermal break profile is secured through the interaction between the polyamide strip and the aluminum extrusion. In a knurled assembly, the aluminum pockets are prepared with a textured surface before the polyamide profile is inserted and rolled, creating mechanical interlocking between the two materials.

The strip geometry therefore needs to work with the knurling and rolling conditions of the aluminum profile rather than being evaluated as an isolated plastic section.

Main Advantages

· Enhanced Mechanical Grip — The engagement structure supports stronger contact with the aluminum profile.

· Anti-Slip Performance — Helps reduce unwanted movement of the strip during mechanical assembly.

· PA66 GF25 Reinforcement — Provides rigidity for insertion and rolling operations.

· Stable Profile Retention — Supports a secure connection after the aluminum sections are mechanically joined.

· Controlled Extrusion Dimensions — Helps maintain consistent engagement along the strip length.

What the Knurling Needs to Match

The correct knurled strip design depends on the complete aluminum profile.

PA66 GF25 Material

Jinxing uses PA66 nylon reinforced with glass fiber for its thermal break profiles. The reinforced material provides the rigidity required during profile insertion and rolling while maintaining the dimensional stability needed for the finished thermal break section.

The production process covers material preparation, extrusion, cooling, shaping and precision cutting.

Suitable Aluminum Systems

Knurled Polyamide Thermal Break Strip can be used in compatible:

· Aluminum windows

· Aluminum doors

· Curtain wall systems

· Thermally broken architectural profiles

· Customized aluminum extrusion systems

The appropriate knurled geometry should be selected from the actual profile drawing and assembly process.

Manufacturing Control

Jinxing controls extrusion temperature, pulling speed and cooling conditions during profile production. Samples are checked for cross-sectional dimensions and surface defects to maintain consistency along the strip.

Incoming materials can be checked for melt flow index, glass-fiber content and moisture. Finished profiles undergo appearance and dimensional inspection before shipment.

Customized Knurled Profiles

Different aluminum profiles may require different engagement dimensions. Jinxing can develop customized Knurled Polyamide Thermal Break Strips from aluminum extrusion drawings or physical samples.

Customization can include:

· Cross-sectional dimensions

· Engagement geometry

· Special profile sections

· Color

· Cut length

· Packaging

· Laser coding

Assembly Considerations

For a knurled thermal break system, stable performance depends on the complete assembly process:

Aluminum pocket preparation → Knurling → Strip insertion → Rolling → Mechanical locking

The knurling depth, strip dimensions and rolling conditions should be matched to the aluminum profile to avoid insufficient engagement or profile damage.

Supply Options

Jinxing can supply suitable thermal break strips in straight lengths or coils. Standard straight strips are available at 6 m per piece, with customized cutting available according to production requirements.

FAQ

What is a Knurled Polyamide Thermal Break Strip?

It is a PA66-based thermal break profile used in aluminum systems where enhanced mechanical engagement between the polyamide strip and aluminum extrusion is required.

What is the purpose of knurling?

Knurling creates a textured contact surface in the aluminum pocket, allowing the inserted polyamide strip to form a stronger mechanical interlock during rolling.

Does the polyamide strip itself need to be knurled?

The term can refer to a thermal break assembly designed for knurled aluminum pockets. The exact surface and engagement geometry should be confirmed from the specific aluminum profile design.

What material does Jinxing use?

Jinxing uses PA66 reinforced with glass fiber, with PA66 GF25 used for its core thermal break profiles.

Can the knurled profile be customized?

Yes. Jinxing can develop the cross-section and engagement details according to aluminum profile drawings or samples.

Where is this type of thermal break strip used?

Typical applications include thermally broken aluminum windows, doors, curtain walls and other aluminum extrusion systems requiring stable mechanical joining.
