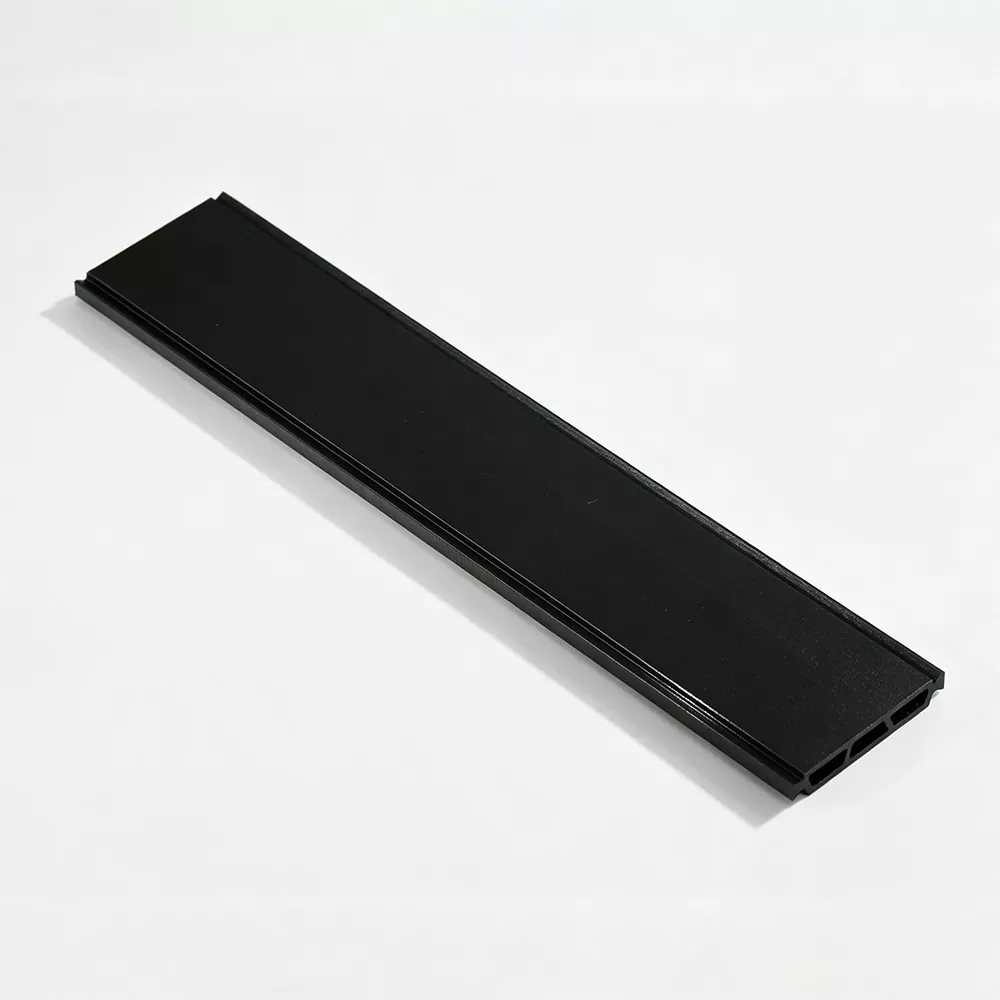

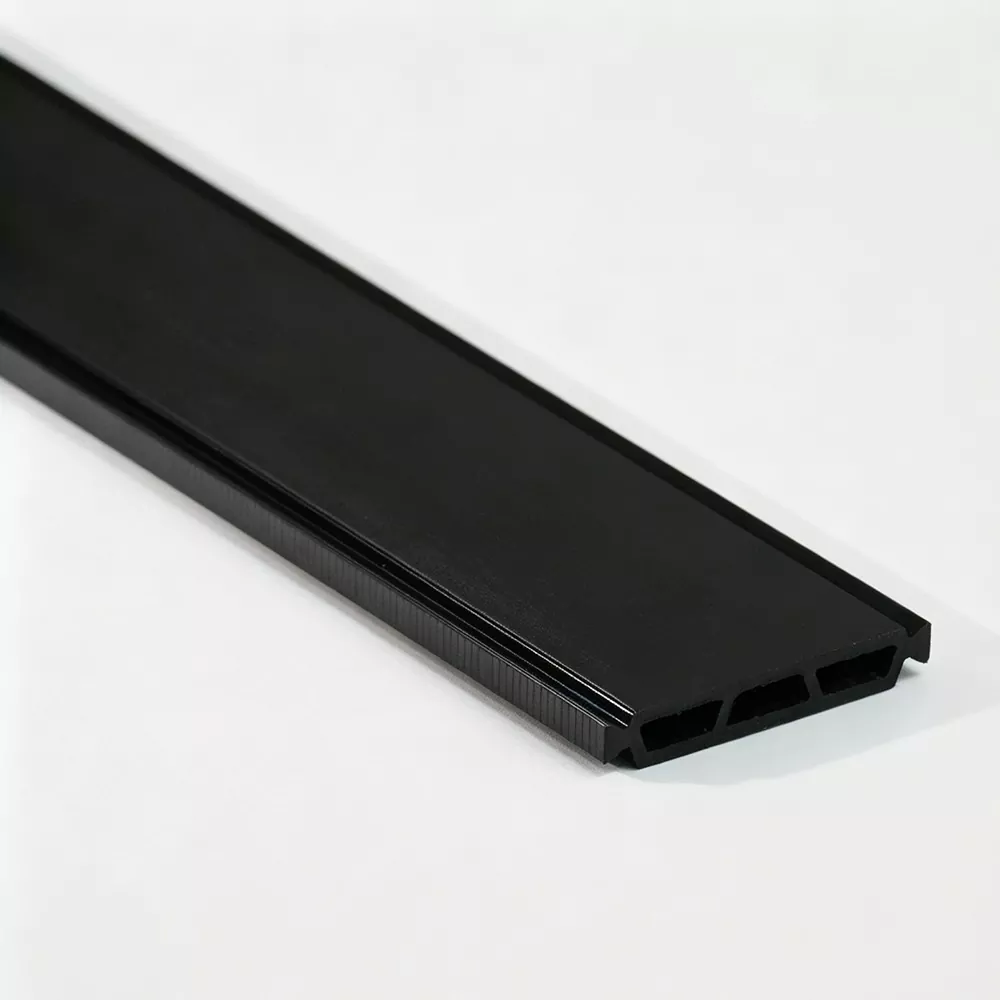

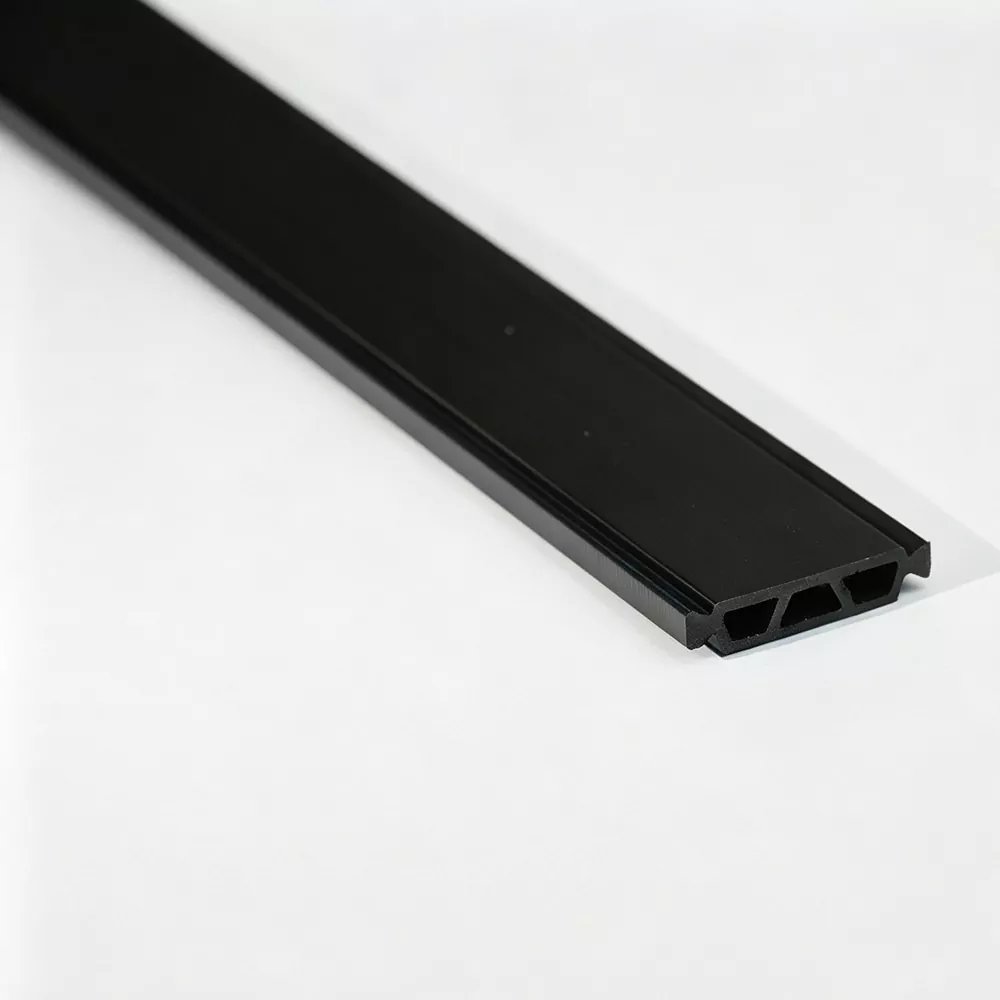

The I-Type geometry provides a straightforward thermal break connection, while the 25% glass-fiber reinforcement gives the profile the rigidity needed for insertion and mechanical assembly. Jinxing, as a China manufacturer and factory for PA66 GF25 I-Type Thermal Break Strip, produces this full-specification profile around the actual groove dimensions and locking requirements of the aluminum extrusion.
The product name describes both the material and the section:
PA66 GF25
PA66 nylon reinforced with 25% glass fiber, providing increased rigidity and mechanical stability.
I-Type
A straight, symmetrical cross-section designed for aluminum profiles with matching thermal break cavities.
Together, these characteristics make the strip suitable for systems that require a simple profile form with reinforced mechanical performance.
· 25% Glass-Fiber Reinforcement — Improves rigidity and resistance to deformation.
· I-Type Profile — Fits aluminum systems designed around a straight thermal break section.
· Stable Mechanical Engagement — Supports secure connection during profile assembly and rolling.
· Consistent Cross-Section — Controlled extrusion helps maintain the required dimensions.
· Thermal Separation — Creates a non-metallic barrier between separated aluminum sections.
The I-Type section is relatively simple, but its dimensions still need to match the aluminum extrusion precisely.
|
Item |
Requirement |
|
Strip width |
Matches the aluminum cavity |
|
Strip thickness |
Fits the specified thermal break space |
|
End dimensions |
Engages correctly with the profile groove |
|
Profile height |
Fits the available section |
|
Rolling condition |
Maintains mechanical retention |
A profile drawing is recommended when confirming the correct size.
PA66 GF25 I-Type Thermal Break Strip is suitable for compatible:
· Aluminum window profiles
· Aluminum door profiles
· Curtain wall framing
· Architectural aluminum extrusions
· Customized thermally broken profile systems
Jinxing checks PA66 and glass fiber before extrusion, including relevant properties such as moisture, melt flow index and glass-fiber content.
The PA66 GF25 I-Type Thermal Break Strip is formed through extrusion, cooling, shaping and cutting. During production, cross-sectional dimensions and surface condition are checked to maintain consistency along the strip.
A standard I-Type dimension may not fit every aluminum extrusion. Jinxing can adjust the profile according to drawings or samples, including:
· Width and thickness
· End geometry
· Profile height
· Color
· Cut length
· Packaging
· Laser coding
For new sections, tooling and trial extrusion can be completed before mass production.
Straight strips are available at 6 m per piece, while coiled supply can be arranged for suitable specifications. Cut-to-length processing is also available for project-specific requirements.
It refers to PA66 nylon reinforced with 25% glass fiber, used to improve the rigidity and mechanical stability of the thermal break profile.
It is a thermal break profile with a straight I-shaped cross-section designed for compatible aluminum extrusion cavities.
The combination provides a simple profile geometry together with the increased rigidity and mechanical stability of glass-fiber-reinforced PA66.
Yes. Jinxing can customize dimensions and profile details according to aluminum extrusion drawings or physical samples.
It can be used in thermally broken aluminum windows, doors, curtain walls and other compatible aluminum extrusion systems.
The aluminum profile drawing should be checked for cavity dimensions, strip thickness, end geometry and mechanical engagement.
